Earthing Electrodes


Our product range includes a wide range of Earthing Electrodes such as Plate Earthing Electrodes, GI Earthing Electrodes, GI Electrical Earthing Electrodes, Safe Earthing Electrodes and Electrical Earthing Electrodes.


Earthing Electrodes


Earthing Electrodes We are the prominent manufacturers of Earthing Electrodes in Chennai.
  • Types:
  • Single pipe
  • Pipe in pipe
  • Hot dip Galvanized
  • Pipe in Strip

Safe Earthing Electrodes


Safe Earthing Electrode Leading manufacturers of the safe earthing electrodes in chennai.
  • Types:
  • Single pipe
  • Pipe in pipe
  • Hot dip Galvanized

Secondary earthing electrodes is filled with highly conductive and non-corrosive compound, and innovation of ours which safeguards the primary electrode, over a long period of time from getting corroded, Even if the outer shell corrodes the inner electrodes functions in a normal way protected by the special compound.

The bottom is sealed with the help of hot dipped galvanized G.I., Solid steel or copper plate and the top is sealed with cap, with ectende electrode, The entire is sealed so that the corrosion does not seep through.

Electrical Earthing Electrodes


Electrical Earthing Electrodes Earthing electrode is easily installed with less space required as compared to conventional earthing and yet has a longer life. Earthing powder which surrounds earthing electrode is hygroscopic and conductive, which helps the longer period of effective earthing. Earthing powder has the quality of absorbing and retaining moisture contents for a very long period. Very low resistance value ensures safe and sound earthing.

GI Earthing Electrodes


GI Earthing Electrodes We bring forth excellent quality GI Earthing Electrode which meet the IS3043 standards. Furthermore, this 3 M model product complies with the norms of 1987. Because of hot dip galvanization, the earthing electrode are sturdy and corrosion resistant. For clients' convenience, we customize this product.
  • Types:
  • Single pipe
  • Pipe in pipe
  • Hot dip Galvanized
  • Pipe in Strip

Copper Bonded Solid Earth Electrodes


Copper Bonded Solid Earth Electrodes Noshock Safe Earthing Systems is proud to introduce Copper Bonded Earth Electrodes especially for Earthing in Rocky Soil Conditions. The Copper Bonded Earthing System is made of solid iron rod bonded with a uniform copper bonding of 100 microns using the latest bonding technology where the bonding protects the solid iron rod against corrosion. The Solid Copper Bonded Rod can even be hammered directly into the ground in places where it is difficult to augur a hole. The copper bonding ensures literally life-long earthing for 30 years thus providing complete safety to equipment and personnel involved.

Sizes: 17.5 mm Diameter in lengths of 1, 2 and 3 Meters.

Earthing Systems


Our product range includes a wide range of Earthing Systems such as Pipe Earthing Systems, Safe Earthing Systems, Chemical Earthing Systems, Copper Bonded Earthing Systems, Copper Earthing Systems, Maintenance Free Earthing Systems and many more items.


Pipe Earthing Systems


Pipe Earthing Systems We are the leading pipe earthing system manufacturers in chennai
  • Types:
  • Single pipe
  • Pipe in pipe
  • Hot dip Galvanized
  • Pure Copper Electrodes

Safe Earthing Systems


Safe Earthing Systems We are the leading Safe earthing system manufacturers.
  • Types:
  • Single pipe
  • Pipe in pipe
  • Hot dip Galvanized
  • Pipe in Strip
  • Pure Copper Electrodes

Chemical Earthing Systems


Chemical Earthing Systems Company has core competency in manufacturing 'chemical earthing system' which is unique maintenance free/hassle free/fool proof technology for providing earthing/grounding for all types digital/analog based systems, generators, panels, epabx etc.
  • Types:
  • Single pipe
  • Pipe in pipe
  • Hot dip Galvanized

Copper Bonded Earthing Systems


Copper Bonded Earthing Systems We are the leading supplier Copper Electrode 17.5 mm Dia 1,2and 3 Meter Length + 1 Bags of Back Fill compound.
Terms and Conditions:Delivery: Within a week Time and Transportation Charges will be extra payment: 100% Advance Before Delivery of material along with Taxes: @ 5% VAT extra.Installation: Will be extra.We hope you will find our terms & conditions most reasonable and will place an official order in due course of time. Do call us for any further clarifications.

Copper Earthing Systems


Copper Earthing Systems We are the leading and prominent manufactures of copper earthing systems in chennai.

Pipe In Pipe Earthing Systems


Pipe In Pipe We are the prominent manufacturers of pipe in pipe earthing systems in chennai
  • Types:
  • Single pipe
  • Pipe in pipe
  • Hot dip Galvanized

Maintenance Free Earthing Systems


Maintenance We undertake Earthing Maintenance Contract on an annual basis. Furthermore, we can solve any type of earthing problem and maintain good condition of earthing systems. We are counted as one of the leading service providers of earthing maintenance. For clients' convenience, we provide this service at nominal rates..
  • Types:
  • Single pipe
  • Pipe in pipe
  • Hot dip Galvanized
  • Pipe in Strip

Hitech Earthing Systems


Hitech Earthing We are the pioneers in manufacturing and providing Hitech earthing systems in chennaiWe are the pioneers in manufacturing and providing Hitech earthing systems in chennai.
  • Types:
  • Single pipe
  • Pipe in pipe
  • Hot dip Galvanized
  • Pipe in Strip
  • Pure Copper Electrodes

Special Earthing Systems


Special Earthing Systems We are the specialist in the special earthing systems in chennai.
  • Types:
  • Single pipe
  • Pipe in pipe
  • Hot dip Galvanized
  • Pipe in Strip
  • Pure Copper Electrodes

Size: Dia - 40mm,50mm,80mm / Length - 1 Mt,2Mt,3Mt

Chemical Earthing Compounds


Supplier & Manufacturer of Chemical Earthing Compound. Our product range also comprises of Earthing Electrodes, Earthing Solutions and Earthing Systems.


Chemical Earthing Compounds


Chemical Earthing We are one of the most preferred organization for Earthing Bag fill Compound. This material can absorb huge quantity of water and can hold it for longer duration. This product can create zone of low resistance which in turns make the electrode output persistent.
  • Types:
  • Available in 25KG

NOSHOCK EARTHING - ADVANTAGES


Revolutionary Pipe in Pipe Technology:


Safe Earthing Electrodes employs hot dipped tubes galvanized from both inside & outside.


Small Area Required:


An augur of 150 – 200 mm dia is only required and the electrode is inserted with the Back Fill Compound surrounding the electrode.


Absence of Corrosion:


We do not advice the use of Salt & Charcoal surrounding the Safe Earthing Electrodes as we have developed a "BACK FILL COMPOUND", which is to be used surrounding the Safe Earthing Electrode to retain moisture and delay the corrosion of the outer shell G.I. Pipe for a very long period of time.


Absolutely SAFE:


The resistance is maintained at very low levels due to the consistency in the performance of the Safe Earthing Electrodes, resulting in the dispersion of fault current perfectly ensuring safety to Personnel and Equiptment.


Long Life – FIT AND FORGET:


Replacement? Forget it! No replacement required in a long long period of time. Literally Life Long.



ORDINARY EARTHING - DISADVANTAGES


CopperPlate/SinglePipeTechnology:


Single Pipe of commercial quality made of cast Iron of different sizes whichever is readily available is inserted with copper plate below.


Large Area Required:


A large pit of 3X3 or 4X4 feet is dug and the copper plate is kept at the bottom with the pipe and Funnel for watering welded to it.


Presence of Corrosion:


The use of SALT & CHARCOAL surrounding the earthing, gives a temporary solution for getting low resistivity and after some time the salt starts to corrode the earth pipe and increasing the resistance by manifold.


High Maintenance:


To maintain low resistivity, the earthing pipe is to be cleaned properly, and regularly, salt, charcoal and water to be added causing perennial maintenance headache and expenses every year.


UNSAFE:


As the resistance increases, the dispersion of the fault current is not proper; this damages the equipments slowly & surely resulting in high expenses by way of maintenance cost and replacement of the equipments and unsafe to personnel.


Short Life:


Timely replacement of earthing is necessary within short period of time. Recurring expenses of installation go up with every passing year.

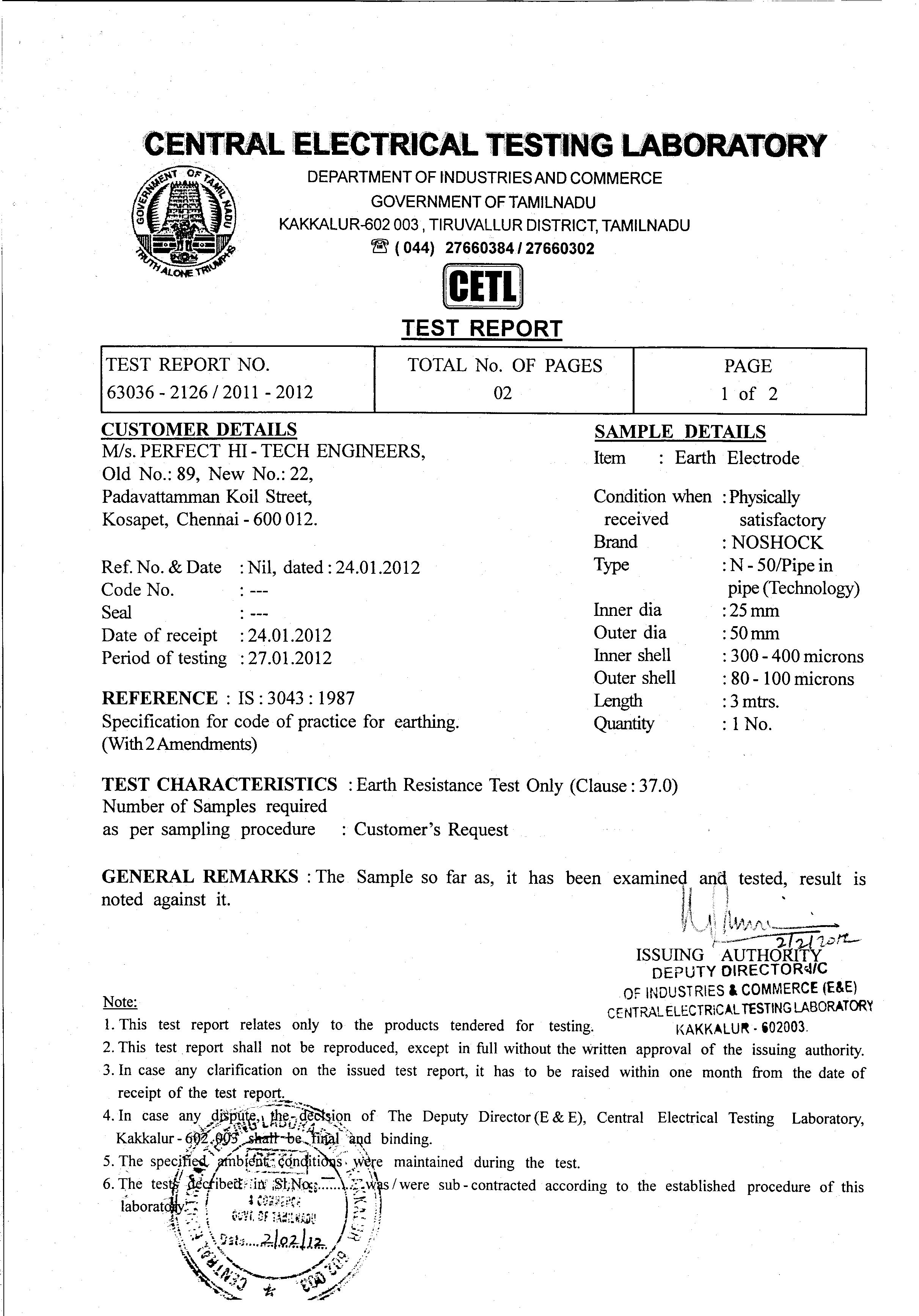

Central Electrical Testing Laboratory One


Central Electrical Testing Laboratory : View

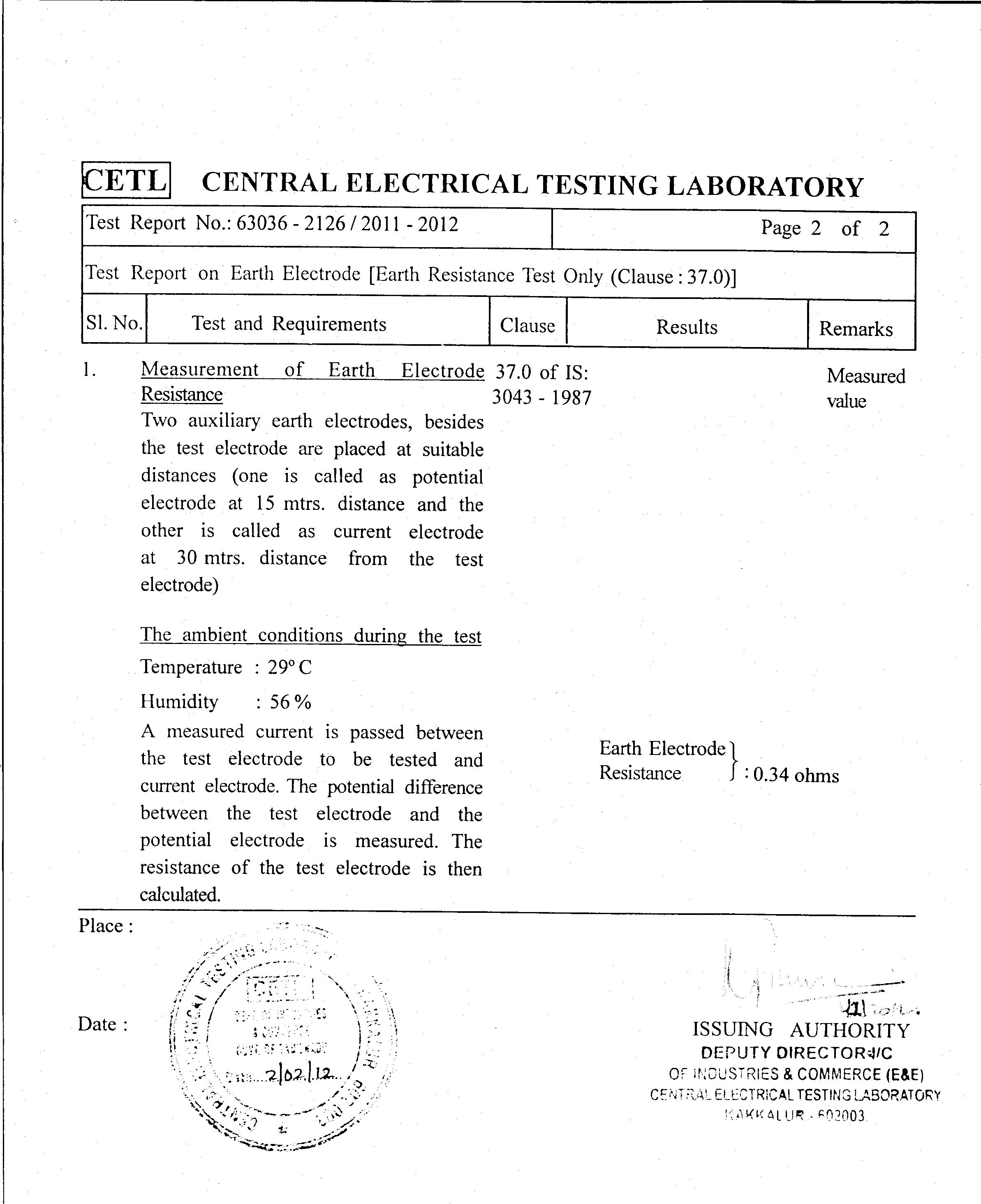

Central Electrical Testing Laboratory Two


Central Electrical Testing Laboratory : View
